Have you ever wished you could see everything around your car at once? A Birds Eye View Camera in Acar gives you just that—a clear, all-around view to keep you safe and confident while driving or parking.

Imagine avoiding blind spots, tight corners, and tricky parking spaces with ease. If you want to know how this smart technology works and why it’s becoming a must-have for every driver, keep reading. Your next drive could be safer and stress-free with just one simple upgrade.

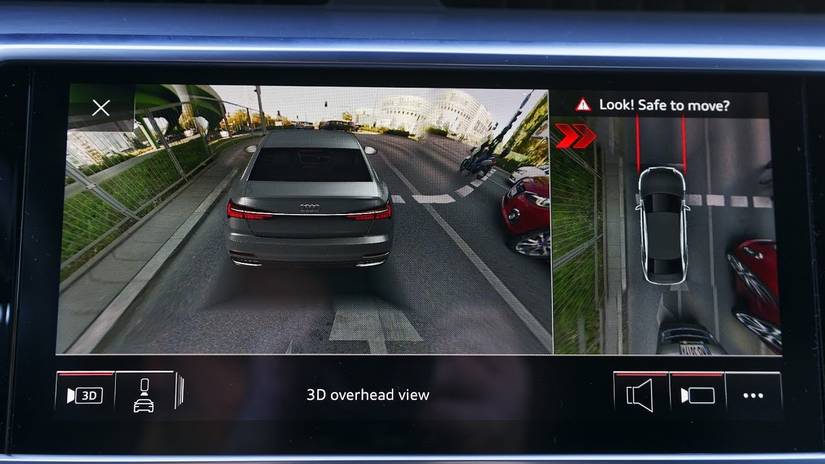

Credit: www.hotcars.com

Birds Eye View Camera Basics

A Birds Eye View Camera helps drivers see around their vehicle from above. It gives a wide view of the car’s surroundings. This camera system is useful for parking and tight spaces.

It uses multiple cameras placed around the car. These cameras work together to create a single top-down image. This makes driving safer and easier.

How It Works

The system combines images from cameras on the front, back, and sides of the car. It processes these images in real time. Then, it stitches them into one clear view.

This view is shown on the car’s screen. Drivers can see everything around the vehicle. It helps to avoid obstacles and park better.

• Cameras capture live video from different angles
• Software merges videos into one top-down image
• Image shows on the dashboard screen
• Drivers use the view to guide the car safely

Key Components

The main parts are cameras, a control unit, and a display screen. Cameras are placed around the car’s front, rear, and sides. They capture the surroundings continuously.

The control unit processes images from all cameras. It creates one combined image. The display screen shows this image to the driver.

• Multiple wide-angle cameras
• Image processing control unit
• Dashboard display screen
• Wiring and software to connect parts

Benefits For Drivers

A Birds Eye View Camera in a car gives drivers a clear view from above. It shows the area around the vehicle on a screen. This helps drivers make safer moves and avoid accidents.

Using this camera system makes driving easier in tight spaces and busy roads. It adds extra safety by showing spots that are hard to see with mirrors alone.

Enhanced Parking

The Birds Eye View Camera helps drivers park more accurately. It shows the exact distance between the car and obstacles around it. This reduces the risk of bumps and scratches.

• Shows all sides of the vehicle
• Helps avoid hitting curbs or poles
• Makes parallel parking easier
• Improves confidence in tight spots

Improved Blind Spot Detection

This camera system gives a full view of blind spots. Drivers can see cars, bikes, or pedestrians that are hard to notice. This lowers the chance of dangerous lane changes.

Blind Spot Area	Traditional Mirror	Birds Eye View Camera
Left Side	Limited	Clear View
Right Side	Limited	Clear View
Rear Corners	Hidden	Visible

Accident Prevention

The system warns drivers of possible collisions. It shows moving objects near the car and helps with quick reactions. This can reduce crashes in busy traffic and parking lots.

Installation Process

Installing a birds eye view camera in your car improves safety and parking. The process needs careful planning and basic tools.

This guide covers camera placement and wiring connections. Follow these steps for a proper setup.

Camera Placement

Choose the right spots to mount the cameras for a full 360-degree view. Cameras are usually placed at the front, back, and sides of the car.

• Front camera near the grille or bumper
• Rear camera above the license plate
• Side cameras under side mirrors
• Ensure cameras have a clear, unobstructed view
• Mount cameras firmly to avoid shaking

Wiring And Connections

Connect the cameras to the central control unit and the car’s power supply. Use proper cables and connectors for safety and signal quality.

Connection	Description	Tip
Power Cable	Connects to car battery or fuse box	Use a fuse for protection
Video Cable	Transmits video signal to control unit	Keep cables away from heat sources
Ground Wire	Ensures proper grounding to avoid interference	Attach to clean metal surface
Control Unit	Receives signals and processes images	Mount inside dashboard or glove box

Technology Behind The Scenes

A Birds Eye View Camera in a car shows a 360-degree image around the vehicle. It helps drivers see all sides clearly. This system uses several cameras placed on the car’s exterior.

The technology combines images from different cameras to create one clear, wide view. This makes parking and driving safer by removing blind spots.

Image Stitching

Image stitching merges pictures from multiple cameras into one seamless view. The software aligns the edges and blends the colors. This process creates a smooth and continuous image around the car.

• Collect images from front, rear, and side cameras
• Adjust for lens distortion and angle differences
• Match overlapping areas and blend edges
• Produce a single 360-degree bird’s eye image

Sensor Integration

Sensors work with cameras to improve accuracy. They detect the car’s position and surroundings. This data helps the system adjust images correctly in real time.

Sensor Type	Function
Ultrasonic Sensors	Measure distance to nearby objects
Gyroscope	Detect car’s angle and rotation
Accelerometer	Track car’s movement and speed
Wheel Speed Sensors	Monitor wheel rotation for position data

Comparing With Traditional Cameras

A birds eye view camera in a car shows the area around the vehicle from above. It uses several cameras placed on the car’s sides. These images combine into one wide view.

Traditional cameras usually show only one direction. They do not give a full view of the car’s surroundings. This can make parking and driving in tight spaces harder.

Wide-angle Vs Birds Eye

Wide-angle cameras show a broad area but from one side only. They can distort objects at the edges of the image. You see less detail far from the camera.

A birds eye view camera combines images from all sides. It creates a clear, 360-degree view from above. This helps you see all obstacles near the car.

• Wide-angle: single view, may have blind spots
• Birds eye: full surround view, fewer blind spots
• Wide-angle: image distortion at edges
• Birds eye: clear and balanced image

Cost And Maintenance

Birds eye view cameras cost more than traditional or wide-angle cameras. They need multiple cameras and a special system to join images.

Maintenance can be more complex for birds eye cameras. Each camera must stay clean and work well. Traditional cameras are simpler and cheaper to fix.

• Birds eye: higher purchase cost
• Birds eye: requires regular cleaning of multiple cameras
• Traditional: lower cost and easier maintenance
• Traditional: fewer parts to check

Common Issues And Fixes

Birds Eye View Cameras in Acar help drivers see around their vehicles. They reduce blind spots and make parking easier.

Sometimes, these cameras have problems that affect their use. Here are common issues and how to fix them.

Calibration Problems

Calibration means setting the camera angles right. If the camera is not calibrated well, the view can be off.

Wrong calibration causes the image to look shifted or the distance to seem incorrect.

• Check if the camera was installed properly.
• Use the car’s system settings to recalibrate the camera.
• Drive slowly in an open area to help the system adjust.
• If issues continue, visit a professional for calibration help.

Image Distortion

Image distortion happens when the camera shows a warped or blurry picture. This makes it hard to judge space.

Distortion can be caused by dirty lenses or damaged camera parts.

• Clean the camera lens with a soft cloth regularly.
• Check for cracks or damage on the lens cover.
• Make sure the camera is not loose or misaligned.
• Replace the camera if the image is always distorted.

Future Trends

The birds eye view camera is a key part of modern car safety. It shows a full view around the car from above. New technology will make this system smarter and more helpful.

Future updates will focus on better image processing and more automation. These will improve the driver’s experience and car safety.

Ai And Machine Learning

AI helps the birds eye view camera learn from its surroundings. It can detect objects like pedestrians, cars, and obstacles. Machine learning improves the system’s accuracy over time.

• Real-time object recognition
• Improved image clarity in different lights
• Automatic alert for nearby dangers
• Adaptive camera angles based on driving

Integration With Autonomous Driving

The birds eye view camera works with self-driving systems. It gives the car a full view to avoid collisions and park better. This helps the car make safe driving decisions.

Feature	Benefit
360-degree view	Better obstacle detection
Data sharing with sensors	Improved driving accuracy
Automatic parking assist	Easier parking in tight spots
Collision avoidance alerts	Increased safety

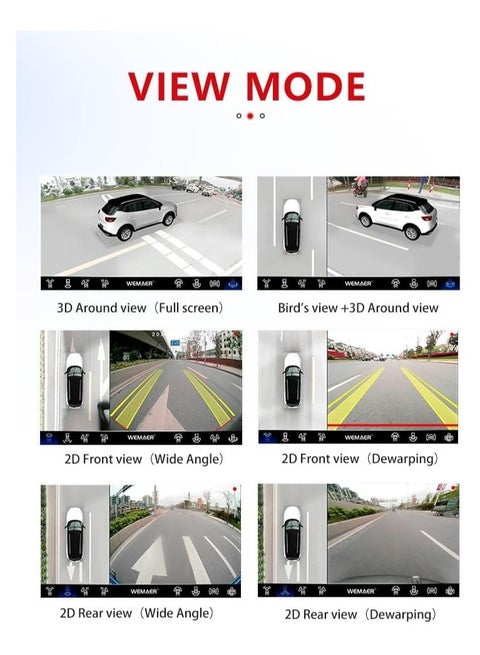

Credit: medium.com

Credit: www.greensafaris.com

Frequently Asked Questions

What Is A Birds Eye View Camera In A Car?

A birds eye view camera provides a 360-degree overhead image of a car. It helps drivers see surroundings clearly, improving safety during parking and maneuvering.

How Does A Birds Eye View Camera System Work?

It uses multiple cameras around the car. These cameras capture images that are stitched together to create a complete top-down view on the screen.

What Are The Benefits Of Birds Eye View Cameras?

They reduce blind spots, making parking easier and safer. They help prevent collisions with pedestrians, objects, or other vehicles around the car.

Can Birds Eye View Cameras Improve Driving Safety?

Yes, they enhance awareness of the car’s surroundings. This reduces accident risks, especially in tight spaces or crowded areas.

Conclusion

A bird’s eye view camera enhances driving safety and convenience. It provides a complete view around your car. This helps in parking and avoiding obstacles. Drivers gain more confidence with this feature. It reduces the stress of tight spaces. Easy to use and widely available in modern vehicles.

A practical addition for safe and efficient driving. Understanding its benefits can make a big difference. Investing in such technology is worthwhile. Safer journeys await with a bird’s eye view camera. So, consider it for your next car.
